YZG / FZG Series Vacuum Dryer is a static vacuum dryer, the
drying apparatus will be dry material is heated in a vacuum condition,
and use the vacuum pump to pump damp and make the studio in a vacuum,
the drying rate of the material is greatly accelerated, but also saves
energy. Such as the use of condensers, solvent in raw material can be
recycled, such as the solvent is water, condenser can not, save energy
investments through the condenser.
Process Equipment Demo:
Features:
1, the material under vacuum to reduce the boiling point of the
solution, so that the evaporator heat transfer driving force increases,
and therefore a certain amount of heat transfer can save evaporator heat
transfer area.
2, the operation of evaporation source may be low pressure steam or surplus heat steam.
3, less the evaporator heat loss, a high drying rate can be obtained at lower temperatures, the heat utilized.
4, can be unstable or low-temperature drying of heat sensitive
materials and solvent containing materials and the need to recover the
solvent.
5, can be disinfected before drying, drying process without good works impurities mixed in line with GMP requirements.
6, is a static vacuum dryer, so the body dry material will not be damaged.
7, using a condenser, the material can be effectively recovered solvent.
Adaptation:
Suitable for low-temperature drying easily decomposed at
high temperatures, aggregation and deterioration of the heat-sensitive
materials, is widely used in pharmaceutical, chemical, food, electronics
and other industries.
Technical Parameters:
Specification / Name | YZG-600 | YZG-800 | YZG-1000 | YZG-1400A | FZG-10 | FZG-15 | FZG-20 |
Oven internal dimensions (mm) | F600 × 976 | F800 × 1247 | F1000 × 1527 | F1400 × 2054 | 1500×1060×1220 | 1500×1400×1220 | 1500×1800×1220 |
Oven External dimensions (mm) | 1135 × 810 ×
1024 | 1700 × 1045 ×
1335 | 1693 × 1190 ×
150 | 2386 × 1675 ×
1920 | 1513 × 1924 ×
1720 | 1513 × 1924 ×
2060 | 1513 × 1924 ×
2500 |
Drying rack layer | 4 | 4 | 6 | 8 | 5 | 8 | 12 |
Interlayer distance (mm) | 82 | 82 | 102 | 102 | 122 | 122 | 122 |
Baking tray size (mm) | 310 × 600 ×
45 | 520 × 410 ×
45 | 520 × 410 ×
45 | 460 × 640 ×
45 | 460 × 640 ×
45 | 460 × 640 ×
45 | 460×640×45 |
Number of baking tray | 4 | 8 | 12 | 32 | 20 | 32 | 48 |
Drying rack tube so that pressure (MPa) | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 |
Drying rack temperature (℃) | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 | 35-150 |
The degree of vacuum inside the load (MPa) | -0.09 ~ 0.096 |
In -0.1MPa, the heating temperature 110oC, water gasification rate | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
With a condenser, the vacuum pump models, power (kw) | 2X-15A
2KW | 2X-30A
3KW | 2X-30A
3KW | 2X-70A
5.5KW | 2X-70A
5.5KW | 2X-70A
5.5KW | 2X-90A
2KW |
When not in condenser vacuum pump model, power (kw) | SK-0.8
2.2KW | SK-2.7
4KW | SK-3
5.5KW | SK-6
11KW | SK-3
5.5KW | SK-6
11KW | SK-6
11KW |
Oven Weight (kg) | 250 | 600 | 800 | 1400 | 1400 | 2100 | 3200 |
Note: The water ring vacuum pump with a supercharger in conjunction with, in order to improve the degree of vacuum.
Ordering Information:
1, when ordering according to early physical properties of dry
material moisture content of the final moisture content, temperature,
degree of vacuum drying the amount of drying time and other factors to
select the appropriate vacuum dryer. The same type of water vapor in a
vacuum dryer conducting oil heating electric heating four kinds,
respectively. For example, to increase the amount of drying may be
increased drying rack layer please ask me plant.
2, using the instructions above vacuum drying system in Annex I
plant can provide users with installation, please note when ordering.
3, the company can vacuum drying system raised by users of the
special requirements and provide design and manufacture of installation.
4, the company implemented a user equipment Third - quality, long-term accessories, please rest assured users.

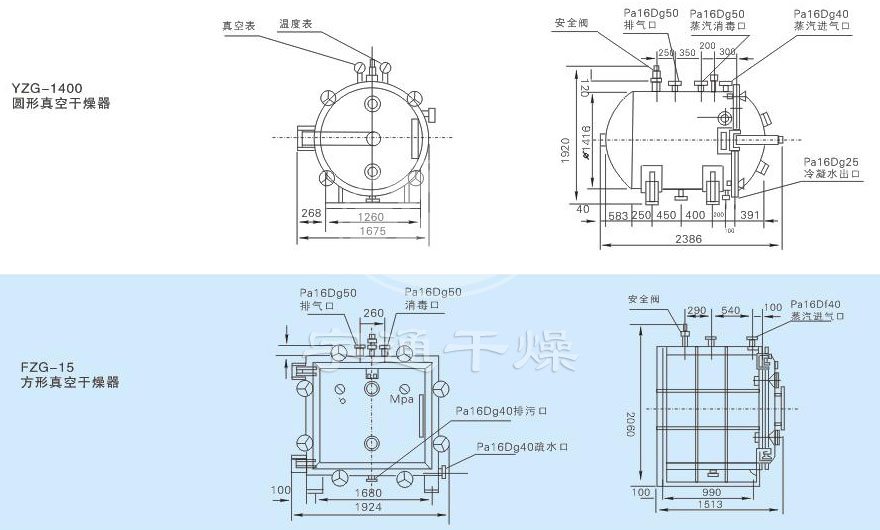

Schematic:
