WXZ single (double) effect of external circulation evaporator (recyclable solvent)
Detailed description

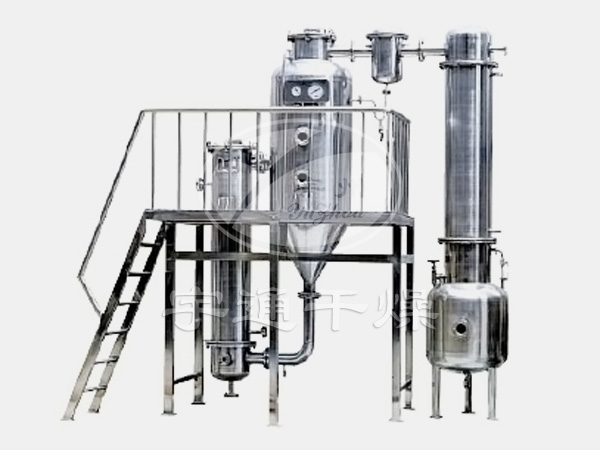

WXZ single (double) effect outer circulation evaporator (recycled solvent)
outer circulation evaporator heating chamber from the main
separation chamber, condenser, cooler, that is composed of five parts
liquid barrels can be used in the pharmaceutical, food, chemical, etc.
The industry is concentrated liquid material, distillation, recovery of
organic solvents and other processes; heating chamber for the film-tube
heat exchanger, the whole system is working under negative pressure, so
the heat-sensitive material will not destroy its active ingredient, with
production Capacity, high efficiency, short heating time and other
characteristics. This equipment and the material contact part uses
OCr18Ni9 high quality stainless steel manufacture, has the good decay
resistance performance, the durable, conforms to the drugs hygiene
request.
Item | WXZ100 | WXZ150 | WXZ250 | WXZ300 | WXZ350 | WXZ500 | WXZ1000 | WXZ2000 | ||||||||||||||||||
Evaporation (Kg / h fresh water) | 100 | 150 | 250 | 300 | 350 | 500 | 1000 | 2000 | ||||||||||||||||||
Steam consumption (Kg / h) | Single effect kg / H | 115 | 170 | 280 | 335 | 390 | 555 | 1105 | 2200 | |||||||||||||||||
Double effect kg / h | 70 | 105 | 175 | 210 | 245 | 350 | 700 | 1400 | ||||||||||||||||||
Cooling water consumption (Kg / h) | Single effect kg / H | 1500 | 2250 | 3750 | 4500 | 5250 | 7500 | 15000 | 30000 | |||||||||||||||||
Double effect kg / h | 750 | 1150 | 1900 | 2250 | 2650 | 3800 | 800 | 15000 | ||||||||||||||||||
Evaporation temperature (deg.] C) | 75 to 90 | Degree of vacuum (MPa) | -0.04 to -0.185 | |||||||||||||||||||||||
Steam pressure (MPa) | 0.25 | Concentration ratio | 1.2 to 1.3 | |||||||||||||||||||||||
Container category | A class of heat exchange vessel (ILE) | |||||||||||||||||||||||||
