PROJECT CASE



Lithium iron phosphate special tray dryer
Detailed description
Lithium iron phosphate special tray dryer
project description:
With the rapid development of the global new
energy, new materials, coated with broad areas of a battery of new
battery materials has become a new field in recent years, the rapid
development of its production process requires very revolutionary
auxiliary equipment to complete, for battery (electromagnetic) material
(lithium iron phosphate, etc.) of the relevant characteristics, we have
developed special battery materials drying equipment should be shipped
out of.
Material Overview:
Lithium iron phosphate electrode material is
mainly used for a variety of lithium-ion batteries. Since 1996, Japan's
NTT first revealed AyMPO4 (A is an alkali metal, M is a combination of
both of CoFe: LiFeCOPO4) after the lithium battery cathode material of
olivine structure, the 1997 Texas State University, John B. Goodenough.
research group also reported the reversibility of LiFePO4 then be moved
to the characteristics of Li prolapse, the United States and Japan
invariably published olivine structure (LiMPO4), so that the material is
subjected to a great deal of attention, and caused extensive research
and rapid development of.
project description:
Lithium iron phosphate select disc dryer is a
highly efficient conduction of continuous drying equipment. Its unique
structure and operating principle determines that it has high equivalent
thermal power efficiency, low energy consumption, small footprint,
simple configuration, convenient control, good operating environment and
other characteristics, widely used in chemical, pharmaceutical,
pesticide, food, feed, agricultural processing and other industries
drying operation. Well received in various industries practice. Now
manufacturing pressure, sealed, vacuum three types. 1200,1500,2200,3000
four of each specification, S (carbon steel), B (contact material part
of the uniform stainless steel), C (on the basis of B on the increase in
steam pipes, main shaft and support of stainless steel, barrel and cap
lined stainless steel). Three materials, dry area 4-180M2, hundreds of
models of products, and can provide a matching seed auxiliary equipment,
users can meet the needs of a variety of materials to dry.
Engineering principles:
PLG series disc continuous dryer disc dryer on
the first layer disc with leaf rake rake arm rotary motion to do so
continuously rake leaves flip materials, material flow along the helix
index over the dry plate surface, small drying material on the disc
moves to the outer edge, and falls below the outer edge of the large
drying plate in the outer edge of the material to the large drying plate
in the middle of moving from falling into the blanking plate and dried
under a layer of small size drying plates are arranged alternately, the
material to continuously flow through the entire dryer, heating medium
through the hollow of the dry plate, heating medium from one end into
the other end of the export, dried material falls from the last case the
underlying layer of drying plate, rake leaves finally moved to the
discharge port. Water vapor evaporated by the setting at the top of the
exhausts from the outlet, entrained dust is recovered by pulse dust
collector, exhaust fan vented to the outdoors by the humidity. Bottom
discharge of dry materials can be packed directly.

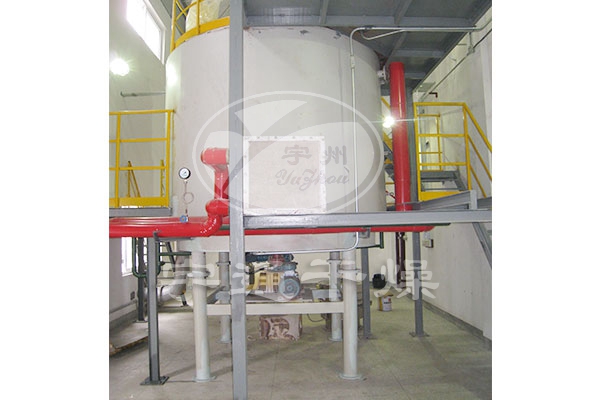

Site real shot pictures:
