Ternary material special vacuum tray dryer
Detailed description
Ternary material special vacuum tray dryer
project description:
With the rapid development of the global new energy, new
materials, coated with broad areas of a battery of new battery materials
has become a new field in recent years, the rapid development of its
production process requires very revolutionary auxiliary equipment to
complete, for battery (electromagnetic) material (ternary material,
etc.) of the relevant characteristics, we have developed special battery
materials drying equipment should be shipped out of.
Material Overview:
Ternary material (Ternary) "international authoritative
dictionary Merriam-webster on the" Three "definition is" Having three
elements, parts, or divisions or arranged in threes ". Therefore, the"
ternary material "is defined by the three chemical components (element),
component (elemental and compounds) or part (parts) of the overall
composition of materials, including alloys, inorganic non-metallic
materials, organic materials, polymer composite materials, widely used
in mineral extraction, metallurgy, material processing, new energy and
other industries.
Cathode material:
Ternary material is lithium cobalt oxide LiCoO2, ternary
material is a nickel-cobalt manganese lithium Li (NiCoMn) O2, ternary
cathode material precursor product is nickel salt, cobalt salt,
manganese salt as raw materials, nickel and cobalt inside manganese
ratio can be adjusted according to actual needs, ternary material made
with respect to the positive electrode of lithium cobalt oxide battery
safety, but the platform is too low, there will be significant capacity
used in mobile phones (mobile phones cutoff voltage is generally about
3.4V) feeling inadequate, in some cottage phone has a battery with
ternary materials, especially high-capacity battery. Lithium iron
phosphate capacity to play a low, not suitable for the pursuit of
high-capacity mobile phone battery requirements ..
Anode material:
Lithium-ion battery anode material, such as "Silicon
Nanowire / Super-P / Polyaniline" and "Silicon Nanoparticles / Carbon
Nanotubes / Polypyrrole" and other ternary anode composite. June 2013,
"Nano Letters" published an article entitled "Three-Dimensional
Hierarchical Ternary Nanostructures for High-Performance Li-Ion Battery
Anodes", the use of synthetic P- polypyrrole wrapped silicon
nanoparticles and the use of single wall carbon nanotubes do electric
enhancer significantly improved electrochemical cycling stability and
rate capability. in addition, its low cost, high efficiency and good
compatibility with industrial processes disorder caused widespread
attention.
project description:
Lithium iron phosphate select disc dryer is a highly
efficient conduction of continuous drying equipment. Its unique
structure and operating principle determines that it has high equivalent
thermal power efficiency, low energy consumption, small footprint,
simple configuration, convenient control, good operating environment and
other characteristics, widely used in chemical, pharmaceutical,
pesticide, food, feed, agricultural processing and other industries
drying operation. Well received in various industries practice. Now
manufacturing pressure, sealed, vacuum three types. 1200,1500,2200,3000
four of each specification, S (carbon steel), B (contact material part
of the uniform stainless steel), C (on the basis of B on the increase in
steam pipes, main shaft and support of stainless steel, barrel and cap
lined stainless steel). Three materials, dry area 4-180M2, hundreds of
models of products, and can provide a matching seed auxiliary equipment,
users can meet the needs of a variety of materials to dry.
Engineering principles:
PLG series disc continuous dryer disc dryer on the first
layer disc with leaf rake rake arm rotary motion to do so continuously
rake leaves flip materials, material flow along the helix index over the
dry plate surface, small drying material on the disc moves to the outer
edge, and falls below the outer edge of the large drying plate in the
outer edge of the material to the large drying plate in the middle of
moving from falling into the blanking plate and dried under a layer of
small size drying plates are arranged alternately, the material to
continuously flow through the entire dryer, heating medium through the
hollow of the dry plate, heating medium from one end into the other end
of the export, dried material falls from the last case the underlying
layer of drying plate, rake leaves finally moved to the discharge
port. Water vapor evaporated by the setting at the top of the exhausts
from the outlet, entrained dust is recovered by pulse dust collector,
exhaust fan vented to the outdoors by the humidity. Bottom discharge of
dry materials can be packed directly.

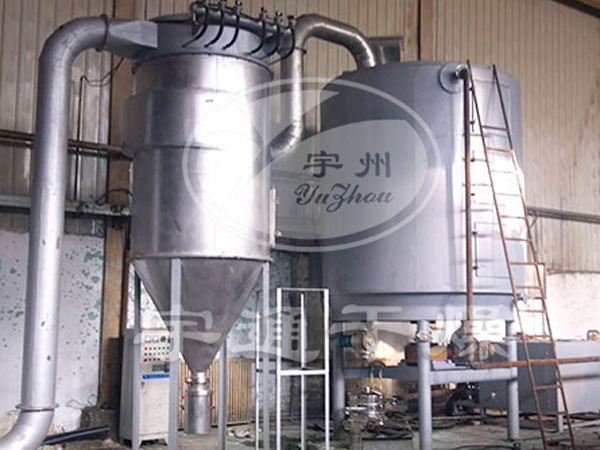

Site real shot pictures:
