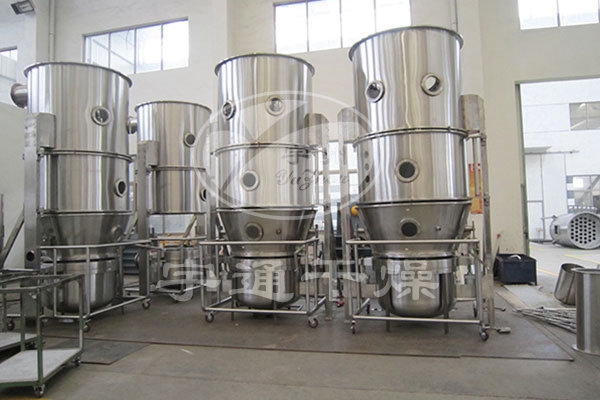

FG series vertical boiling dryer

the FG series vertical boiling dryer is as a GMP pharmaceutical engineering development of new and efficient boiling drying equipment capable of oscillating granulator or efficient wet granulation machine supporting the use of it than the traditional horizontal XF Series Horizontal boiling bed wider stream ...

Detailed description

product description:

FG series vertical boiling dryer is as a GMP pharmaceutical engineering development of new and efficient boiling drying equipment capable of oscillating granulator or efficient wet granulation machine supporting the use of it than the traditional horizontal XF Series Horizontal Fluidizing fluidized bed wider range, speed is generally hot air circulation oven for 10-20 times. Mainly used for drying the pharmaceutical, food, chemical and other industries powder or granular materials.

Features:

1, fluidized drying, heat and mass transfer fast;

2, in a closed negative pressure operation, no dust;

3, the use of antistatic filter material, safe operation;

4, the device no dead ends, thorough cleaning, no cross-contamination, according to the special request, was to increase the mixer, vacuum feeding system;

5, to meet the requirements of GMP;

6, compared with GFG series efficient boiling dryer, there is a greater flow of space.

Technical Parameters:

model			3	5	30	60	120	200	300	500	1000
Items		unit	3	5	30	60	120	200	300	500	1000
Material container	diameter	mm	300	400	700	1000	1200	1400	1600	1800	2200
Material container	capacity	L	12	twenty two	100	220	420	670	1000	1500	2500
Production capacity	Least	Kg / Batch	1.6	4	15	30	80	100	150	250	500
Production capacity	maximum	Kg / Batch	4	6	36	72	140	240	360	600	1100
Steam consumption		Kg / Batch	12	twenty three	70	140	211	282	366	465	800
Compressed air consumption		m3/min	0.3	0.3	0.3	0.6	0.6	0.9	0.9	0.9	1.5
Fan power		kw	2.2	4	5.5	11	18.5	twenty two	30	45	75
temperature		℃	Automatically adjust the room temperature -120
Material yield		%	≥99
Time job		min	15 to 30 (depending on the specific materials may be)
Final moisture content		%	~ 0.2 (depending on the specific materials may be)
noise		dB	≤75dB
Host height		mm	2100	2300	2500	3000	3300	3800	4000	4800	6200

Flow chart:
