product description:
PLG Series Continuous Plate Dryer Descriptions Plate Dryer is a
kind of high effective conducting and continuous drying equipment. Its
unique structure and operating principle determine that it has
advantages of high heat efficiency, low energy consumption, small
occupying area, simple configuration, easy operate and control well as
good operating environment etc. It can be widely used in drying process
in the fields of chemical industry, pharmaceutical, agricultural
chemicals, foodstuff, etc. And is well received by various sectors in
their practical usage. Now there are three big categories, named normal
pressure, closed and vacuum types, four types of specification 1200,
1500, 2200 and 3000; and three kinds of materials, namely A (carbon
steel), B(stainless steel used for those contact mateirals )
working principle:

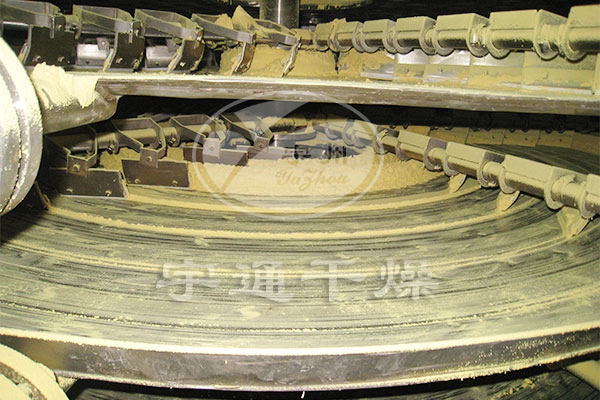

Wet material continuously fed from the feeder on the upper portion
of the first layer of drying plate dryer, rake leaves with a rake arm
rotary movement so continuously rake leaves turn copied material. Index
material along the spiral disk surface drying tide, the material was
dried in a small disk is transferred to the outer edge, and falls below
the outer edge of the large drying plate in the outer edge of the
material on a large drying tower moved inward and drop from the middle
discharge port falls under a layer of small drying pan. Size drying
plates are arranged alternately, the material can be continuous through
the whole dryer. Heating medium through the hollow of the dry plate,
heating medium in the form of saturated steam, hot water or thermal oil
heating medium enters from one end of the dry plate exported from the
other end. Dried materials fell on the bottom of the housing from the
last layer of drying plate, the last being transferred to rake leaves
out of the discharge port. The moisture escape from the material. It is
provided in the roof of the exhausts from the outlet, a vacuum-type
plate dryer moisture on the top cover of the vacuum
extraction. Discharged from the bottom of the dry materials can be
packed directly. By finned heater with addition, solvent recovery
condensers, baghouse, dry material backmixing wooden structure, induced
draft fan and other auxiliary equipment, can increase its drying
capacity, dried paste and heat sensitive materials can be easily
recovery of the solvent, and can be heat decomposition and reaction.
Process Equipment Demo:
Features:
(A) regulation of easy applicability
By
adjusting the thickness of material, spindle speed, number of rake arm,
rake leaves type Rao size allows the drying process to achieve the
best.
Each layer of drying plate can be fed separately hot
medium or cold medium, the material for heating or cooling, the material
temperature control is accurate and easy.
The residence time of materials can be accurately adjusted.
Single flow of materials, no back-mixing, even drying and stable quality, without mixing.
(Ii) the operation is simple, easy
Dryer drive, the parking operation is very simple.
Stop feeding, the transfer material dirt rake leaves can quickly emptying the dryer by.
By
particularity large format view door mirrors, can be carried out within
the equipment very carefully cleaning and observation.
(C) low energy consumption
Thin layer of materials, low spindle speed, low power system requires less power consumption.
By conducting heat drying, high thermal efficiency, low energy consumption.
(Iv) operating environment, recyclable solvents, dust emissions to meet the requirements
Atmospheric type: Due
to the low air velocity within the apparatus, and the humidity inside
the device to compete with low-enacted, dust is difficult to float to
the top of the device, the exhaust-gas temperature at the top of
discharge port of discharge is almost no dust.
Hermetic: with
the Party solvent recovery device, can be easily recycled wet gas
contained in the organic solvent. Simple solvent recovery device,
recovery Xie, for flammable, explosive, toxic and easy oxidation of the
material, available nitrogen as a carrier gas halfway wet cycle, making
it safe to operate. Especially suitable for flammable, explosive, toxic
materials drying.
(E) Easy installation, small footprint
Drier overall factory, the overall transport, simply hoisting, positioning is very easy to install.
Since the drying plates layer vertical layout, vertical installation, even if a large drying area, the area is also very small.
Applications:
Disc
continuous vacuum drying machine for drying solvent to be recovered and
the wet parts of the drying process as flammable, explosive, toxic
substances, can not be directly discharged into the atmosphere, the need
for recycling, and the atmospheric pressure the solvent was evaporated
under high temperatures drying process. The wet parts of methanol,
ethanol, gasoline, pyridine, petroleum ether, halogenated alkanes,
acetone, formaldehyde, wash oil. In the basic configuration, based on
the continuous addition of an access blocking material, condenser,
receiver tank and pump solvent. Escaping from the dryer parts of wet
(solvent vapor) entering the dryer from the top of the solvent recovery
condenser, a cooling medium under cooling fluid condenses into the
solvent, the solvent into the receiving tank, leaving the
non-condensable gas by the solvent pump discharge receiving tank
air. Coolant should be based on the characteristics of the solvent, the
choice of cooling water or cold brine.
The reaction was cooled and dried combustion pyrolysis sublimation
(A) organic chemical products
(Ii) inorganic chemical products
(C) the pharmaceutical, food
(D) feed, fertilizer
Technical Parameters:
specification | OD mm | Height mm | Drying area m2 | Power kw |
1200/4 | F1850 | 2718 | 3.3 | 1 |
1200/6 | 3138 | 4.9 |
1200/8 | 3558 | 6.6 | 1.5 |
1200/10 | 3978 | 8.2 |
1200/12 | 4398 | 9.9 | 2.2 |
1500/6 | F2100 | 3022 | 8.0 |
1500/8 | 3442 | 10.7 |
1500/10 | 3862 | 13.4 |
1500/12 | 4282 | 16.1 | 3.0 |
1500/14 | 4702 | 18.8 |
1500/16 | 5122 | 21.5 |
2200/6 | F2900 | 3319 | 18.5 |
2200/8 | 3739 | 24.6 |
2200/10 | 4159 | 30.8 | 4.0 |
2200/12 | 4579 | 36.9 |
2200/14 | 4999 | 43.1 | 5.5 |
2200/16 | 5419 | 19.3 |
2200/18 | 5839 | 55.4 | 7.5 |
2200/20 | 6259 | 61.6 |
2200/22 | 6679 | 67.7 | 11 |
2200/24 | 7099 | 73.9 |
2200/26 | 7519 | 80.0 |
2500/6 | F3150 | 3319 | 26.3 | 4 |
2500/8 | 3739 | 35 |
2500/10 | 4159 | 43.8 | 5.5 |
2500/12 | 4579 | 52.5 |
2500/14 | 4999 | 61.3 | 7.5 |
2500/16 | 5419 | 70 |
2500/18 | 5839 | 78.8 | 11 |
2500/20 | 6259 | 87.5 |
2500/22 | 6679 | 96.3 |
2500/24 | 7099 | 105 | 13 |
2500/26 | 7519 | 113.8 |
3000/8 | F3800 | 4050 | 48 | 11 |
3000/10 | 4650 | 60 |
3000/12 | 5250 | 72 |
3000/14 | 5850 | 84 |
3000/16 | 6450 | 96 |
3000/18 | 7050 | 108 | 13 |
3000/20 | 7650 | 120 |
3000/22 | 8250 | 132 |
3000/24 | 8850 | 144 |
3000/26 | 9450 | 156 | 15 |
3000/28 | 10050 | 168 |
Process:
