YPG Series Pressure Spray Dryer
a simultaneous drying and granulation can complete device can be adjusted according to process requirements of the feed pump pressure, flow, nozzle size, to obtain the desired size by a certain proportion of spherical particles.
Detailed description
product description:
YPG Series Pressure Spray Dryer is a drying and granulation
can be done at the same time means, according to the process to adjust
feed pump pressure, flow, nozzle size, to obtain the desired size by a
certain proportion of spherical particles.
working principle:
Feed liquid through the diaphragm high-voltage input,
discharge or mist, and then decreased with the flow of hot air, most of
the separated particles collected from the bottom discharge opening,
exhaust and fine powder by the cyclone, exhaust gas from the exhaust fan
discharged by the powder located in the lower end of the cyclone
collection tube pollination, fan outlet can also be equipped with two
dust removal device, and the recovery of more than 96-98%.
Product Animation:
Features:
1, fast-drying, greatly increasing the surface area of the
material after the liquid is atomized in a stream of hot air, you can
instantly evaporate 95% -98% of water to complete the drying time only
need ten seconds to tens of seconds species, particularly suitable for
drying heat sensitive materials.
2, all products of spherical particles, uniform size, good mobility, good solubility, high purity and good quality.
3, using a wide range, depending on the characteristics of the
material can be dried with hot air, it can also be used cold
granulation, strong adaptability of the materials.
4, simple operation and stable, easy to control, easy to automate operations.
Technical parameters (YPG-I type):
Item Type | YPGI-12 | YPGI-14 | YPGI 16 | YPGI-24 | YPGI-28 | YPGI-36 |
Evaporator (kg / h) | 25 | 70 | 100 | 150 | 200 | 400 |
heating method | + Electric heating steam compensation or fuel, gas stove | |||||
Tower diameter (mm) | 1200 | 1400 | 1600 | 2400 | 2800 | 3600 |
Dimensions (m) | 5×4×10 | 6×4×12 | 6×4×13 | 8×4.5×19 | 10×5×20 | 12×5×25 |
Technical parameters (YPG-II type)
Item Type | YPGII-36 | YPGII-40 | YPGII-45 | YPGII-50 | YPGII-56 | YPGII-80 |
Evaporator (kg / h) | 380 | 500 | 600 | 750 | 1000 | 2000 |
heating method | + Electric heating steam compensation or fuel, gas stove | |||||
Tower diameter (mm) | 3600 | 4000 | 4500 | 5000 | 5600 | 8000 |
Dimensions (m) | Provided by the user site layout | |||||
Note:
1, the amount of water evaporation and material properties, the
evaporation temperature related to this table to calculate the intake
air temperature of 150 ~ 160 ℃.
2, the user can choose downstream, against Francis, returning
powder drying method, in order to achieve the desired product
performance.
3, a schematic flow diagram for only, please according to user needs optional components therein.
Applicable materials:
Food, medicine, chemicals, dyes, ceramics, biochemistry,
pesticides, plastics and other applicable with the corresponding flow of
liquid spray dry granulation.
1. Chemical: catalyst, resin, synthetic detergent, oil, ammonium
sulfate, dyes, dye intermediates, white carbon black, graphite, ammonium
phosphate and the like.
2, food: amino acids and the like, seasonings, protein, starch, dairy products, coffee aspirate, fish, meat and other fine.
3, pharmaceuticals: medicine, pesticides, antibiotics, medical drinking and so on.
4, Ceramics: magnesium oxide, clay, metal oxides, dolomite.
5, spray granulation: a variety of body fat, aluminum oxide,
ceramic powder, pharmaceutical, heavy metallic super hardness steel,
chemical fertilizer, granular detergent, medicine.
6, spray cooling granulation: amino fatty acid, paraffin wax,
glycerate, tallow and the like. Aspect spray crystallization, spray
concentrated spray reactions often used.

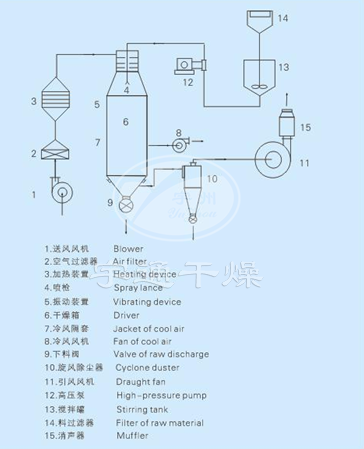

Schematic:
work process:
