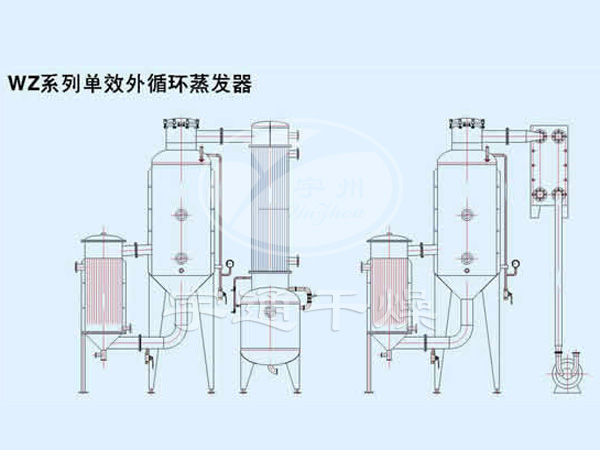

Single-effect evaporator
Detailed description
Purpose:
The equipment is suitable for pharmaceutical, biotechnology, food,
chemical industry, commonly used in traditional Chinese medicine extract
was evaporated, fruit juice, fine chemical solution and the like.
Features:
A. compact, low station area. Inside and outside the precision polishing equipment, in line with GMP requirements.
b. Equipment consists of heaters, separators, anti-foaming, condenser and other components.
c. operating pressure vacuum evaporation temperature is low speed, a
reasonable allocation of each instrument valves and convenient
operation.
Technical Parameters:
WZ-300 | WZ-500 | WZ-750 | WZ-1000 | WZ-2000 | WZ-3000 | |
Evaporation capacity (kg / h) | 300 | 500 | 750 | 1000 | 2000 | 3000 |
Heating area (m2) | 5.2 | 8 | 12 | 16 | 32 | 51 |
Condensation area (m2) | 6 | 11 | 15 | 20 | 40 | 65 |
Steam consumption (kg / h) | 330 | 550 | 820 | 1100 | 2200 | 3300 |
Cooling water (t / h) | 6 | 10 | 15 | 20 | 40 | 60 |
Dimensions (m) | 2.5x1x3.2 | 2.7x1x3.5 | 3x1.2x3.7 | 3.2x1.2x4 | 4x1.2x4.7 | 5x1.4x5 |
