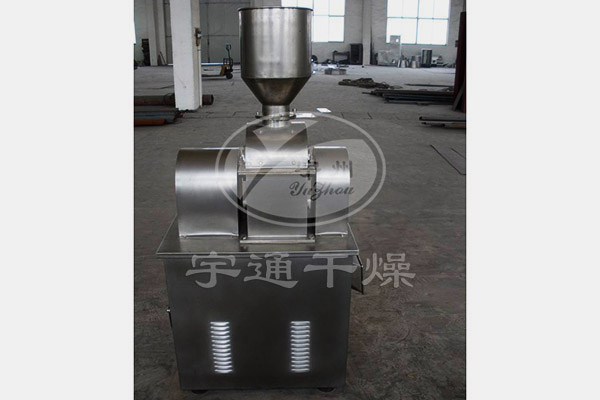

GFS series of highly efficient mill
Detailed description
Application:
This machine uses the principle of mixed dusting to design
and manufacture for the pharmaceutical, food and chemical industries,
extremely versatile. The machine is simple in structure, easy assembly
and disassembly and cleaning of the crushing chamber, crushing chamber
where the material in contact with the part, are made of stainless
steel, to acid corrosion, so that was crushed material to better meet
the health requirements. This machine is easy to move, smooth operation,
low noise, good crushing effect, and low power consumption.
Principle:
This machine is purely mechanical high speed using fast port
side of the blade, the other side hit four blade, so that was crushed by
the high-speed rotary cutting blade material was crushed. The machine
can also use a variety of different-sized blades according to different
materials, particle size obtained by replacing the screen.
Technical Parameters:
model | 8 | 16 | 28 |
Motor power (kw) | 3 | 7.5 | 11 |
Production capacity (kg / h) | 10-100 | 50-300 | 100-500 |
Speed (rpm) | 4000 | 4000 | 4000 |
Fineness (content ≥85%) | 12-120mesh | 12-120mesh | 12-120mesh |
A Type Dimensions (mm) | 800×550×1250 | 900×660×1350 | 1000×750×1665 |
Weight (kg) | 150 | 250 | 350 |
