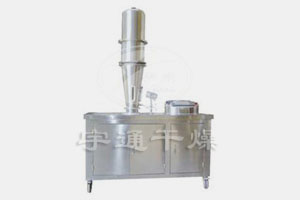

DLB Series Multifunction granulation coating machine
Detailed description
Product
Overview:. DLB Series Multifunction granulation coating machine is a
will, spouted fluidized bed technology and rotary granulation
techniquein western medicine, food and chemical industries granulating,
pill, coated. The particle before tableting, hard capsule particles, the
medicine granules and beverage solid drinks (instant solid particles),
especially for sustained release capsules, granules,
particles prepared as porous instant. For dense balls (pills) particles,
high true sphericity. Equipment sealing, smooth, no dead ends, easy to
operate. The entire process was completed with a single machine can run
and granulating, pill, coated in the same vacuum sealed container.
Applications:
• Mixed: For can fluidized materials such as powders,
granules, pellets, etc. can be obtained uniformly mixed in this device,
since the three-dimensional motion of air (horizontal, rays and
tangential direction), the mixing effect is very advantageous.
• granulation: spray adhesive to the powder material, can produce all kinds of particles have a range of products.
• Coating: highly effective material bed spray system,
and using the new three-tier structure of the nozzle, a powder, granules
or pellets for film coating.
• hot melt coating: available hot melt material, such as thermal wax powder, granules and pellets, etc. for film coating.
• Spray drying: the suspension attached to the spray powder.
• Cooling: Drying with cold air flowing material to achieve the purpose of boiling cooling product.
technical parameters:
model | DLB- | Fives | 15 | thirty | 60 | 120 | 300 | 500 |
The maximum working volume (L) | Top spray | twenty two | 45 | 100 | 420 | 620 | 1100 | 2000 |
Bottom spray | 15 | 35 | 90 | 400 | 550 | 900 | 1600 | |
Electric heating power (KW) | twenty one | 27 | 45 | 81 | 135 | 234 | 315 | |
Temperature range (℃) | 0-120 automatic adjustment | |||||||
Steam consumption (KG / h) | 60 | 100 | 180 | 220 | 366 | 600 | 1000 | |
Induced draft fan power (KW) | 5.5 | 11 | 15 | twenty two | thirty | 55 | 75 | |
Compressed air consumption (m / min) | 0.6 | 0.6 | 0.9 | 1.1 | 1.3 | 3.0 | 4 | |
Weight (kg) | 1450 | 1800 | 2600 | 3450 | 4000 | 6500 | 8000 |
Dimensions:
size | A1 | A2 | A3 | B | C | ΦD | E1 | E2 | G |
Fives | 3210 | 3210 | 2810 | 2140 | 920 | 500 | 3260 | 2610 | 740 |
15 | 4060 | 4060 | 3660 | 2280 | 970 | 800 | 4100 | 3410 | 970 |
thirty | 4400 | 4400 | 4000 | 2520 | 1130 | 1200 | 4600 | 3750 | 1420 |
60 | 4800 | 4800 | 4400 | 2900 | 1180 | 1400 | 5000 | 4100 | 1620 |
120 | 5100 | 5100 | 4700 | 3000 | 1380 | 1500 | 5300 | 4400 | 1620 |
300 | 5760 | 5760 | 5490 | 3465 | 1840 | 1800 | 6500 | 5090 | 1990 |
500 | 6630 | 6630 | 6360 | 4145 | 2145 | 2700 | 7590 | 5960 | 2960 |
