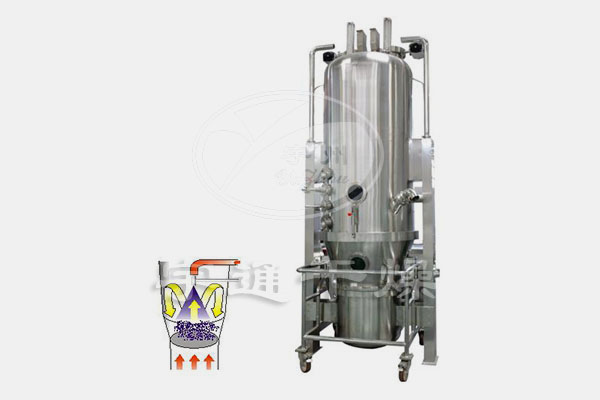

PGL-B Series Spray Drying Granulator
Detailed description
Applications:
※ pharmaceutical industry: tablets, granules, capsules, granules; sugar, sugar-free medicine particles.
※ food: cocoa, coffee, milk powder, granule juice, spices, etc;
※ Other industries: pesticides, feed, fertilizer, pigments, dyes and the like;
Overview:
PGL-B Spray drying granulator is suitable for proprietary Chinese medicines, capsules, granules or tablets coated particles
Features:
● Multi-fluid atomizer is more suitable for the polysaccharide component, heat-sensitive or highly viscous products.
● spray drying chamber, trap chamber, fluidized bed and secondary air supply system and other structures, more appropriate ◇ exhibits spray drying.
● according to "GMP" requirements of the design, manufacture and distribution.
● achieve continuous extract spray process.
● easy to operate and reliable.
● improve spray drying efficiency.
● more stable than FL-type flow, improve the flow of dry strength to overcome the "death bed" phenomenon.
Technical Parameters:
project | specification | 3 | Fives | 10 | 20 | thirty | 40 | 80 | 120 | 150 |
The volume of raw materials | large | 26 | 50 | 100 | 220 | 300 | 420 | 670 | 1000 | 1500 |
For the fluid volume | Kg / hr | 2-4 | 4-6 | 6-15 | 15-25 | 20-40 | 30-60 | 60-100 | 20-160 | 100-200 |
Hydrometer | Kg / l | ≤1.3 | ||||||||
The amount of steam (as 0.6MPa) | Kg / hr | 25 | 50 | 120 | 160 | 240 | 280 | 300 | 380 | 465 |
Auxiliary fan | M 3 / min | 0.4 | 0.6 | 0.9 | 0.9 | 1.1 | 1.1 | 1.3 | 1.6 | 1.8 |
Main fan | kilowatt | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 | 1.5 | 2.2 | |
Host size | kilowatt | 3 | 4 | 7.5 | 11 | 18.5 | 18.5 | twenty two | thirty | 37 |
H 1 (mm) | 1900 | 2360 | 2680 | 3150 | 3630 | 3630 | 4120 | 5050 | 5400 | |
H 2 (mm) | 190 | 260 | 340 | 490 | 540 | 590 | 690 | 990 | ||
H3 (mm) | 1680 | 2140 | 2460 | 2930 | 3410 | 3410 | 3900 | 4830 | 5180 | |
φ1 (mm) | 400 | 550 | 700 | 1000 | 1100 | 1200 | 1400 | 1800 | 2000 | |
φ2 (mm) | 150 | 180 | 180 | 250 | 280 | 280 | 315 | 355 | ||
B (mm) | 860 | 1010 | 1160 | 1460 | 1560 | 1660 | 1860 | 2260 | 2460 | |
L (mm) | 1050 | 1050 | 1250 | 1400 | 1450 | 1500 | 1600 | 1800 | 2000 | |
All dimensions are for reference only, depending on the material circumstances, the Company has the right to change, without prior notice | ||||||||||
